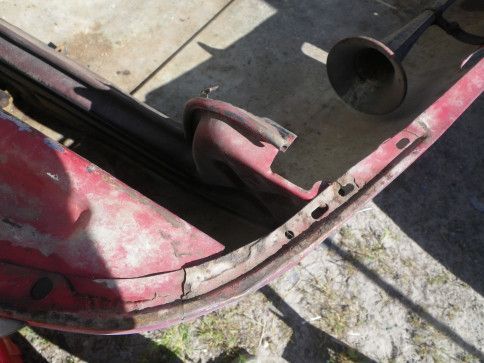

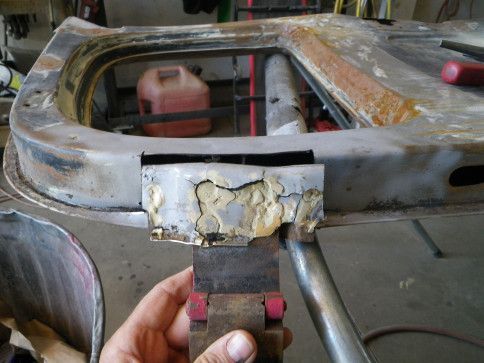

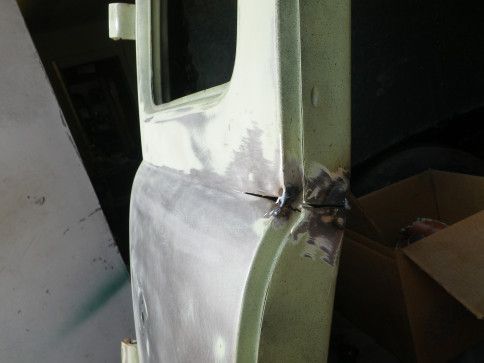

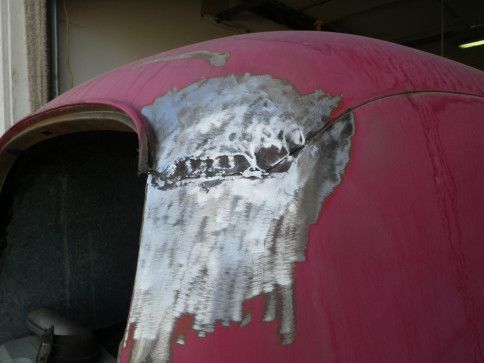

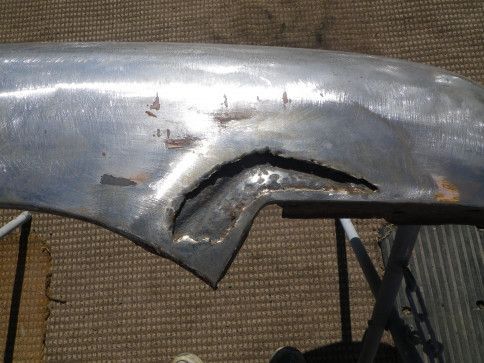

Brazing should never be done where metal needs to flex the tiniest amount

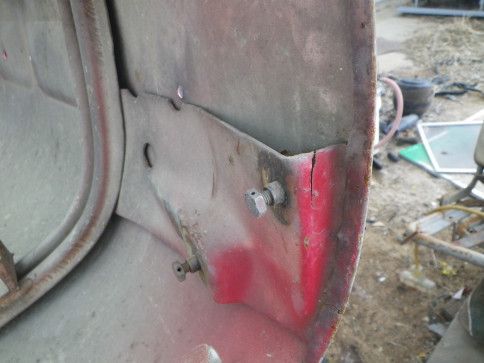

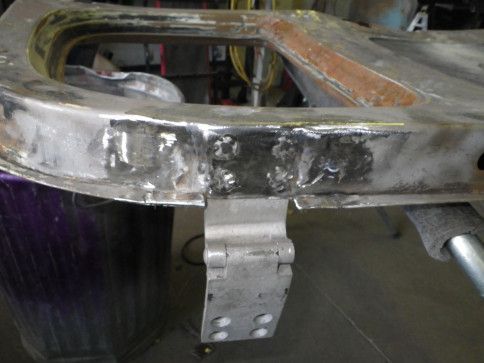

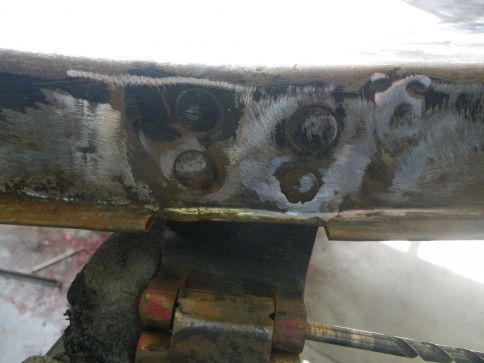

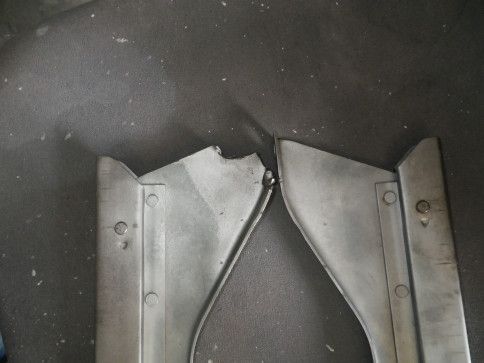

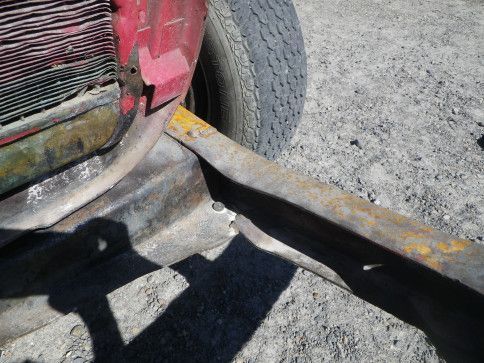

Inner brace was broken, drilled spot welds to remove

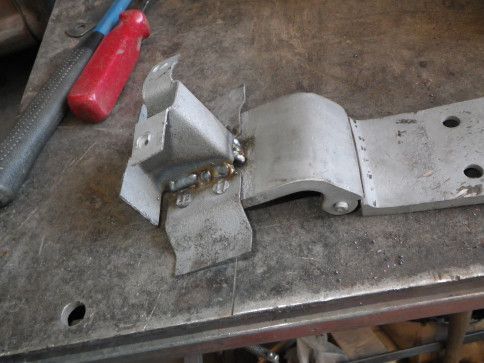

Sandblasted brace to reweld

solid again

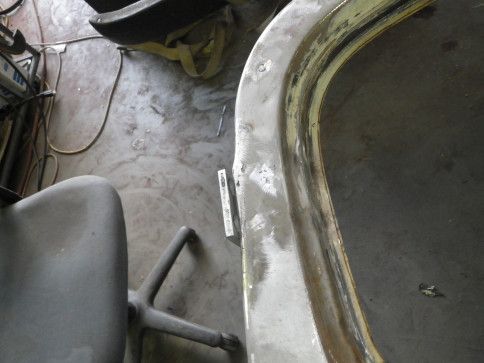

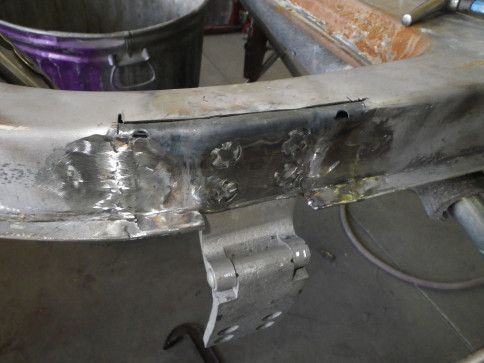

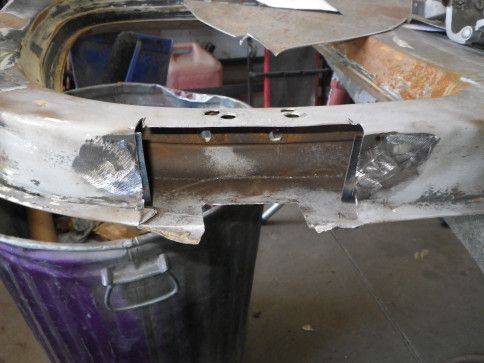

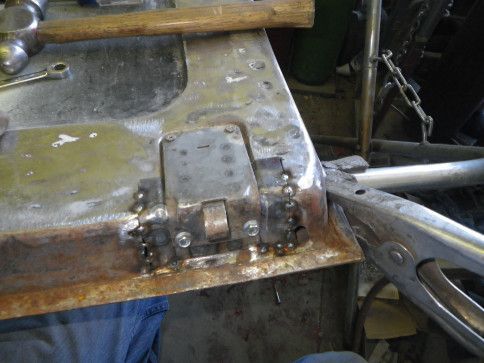

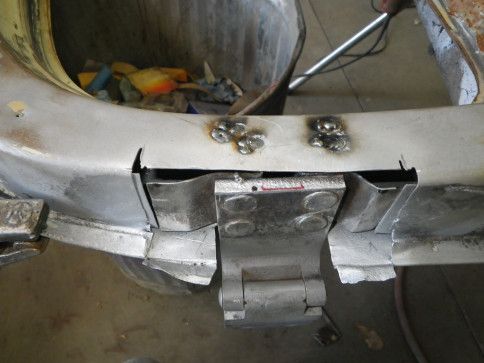

Careful realignment to weld, test fit to body before final welding

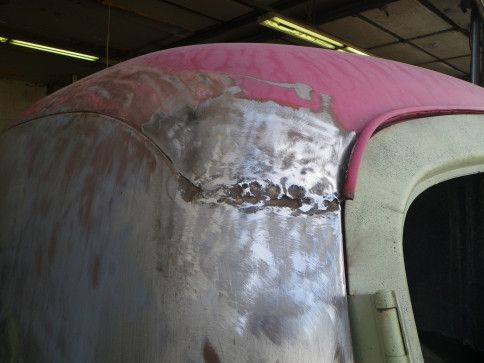

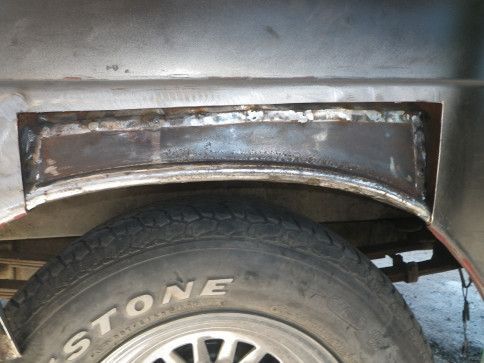

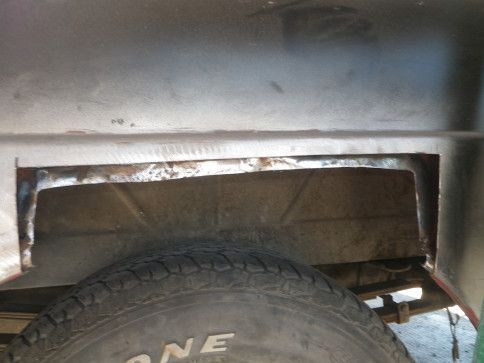

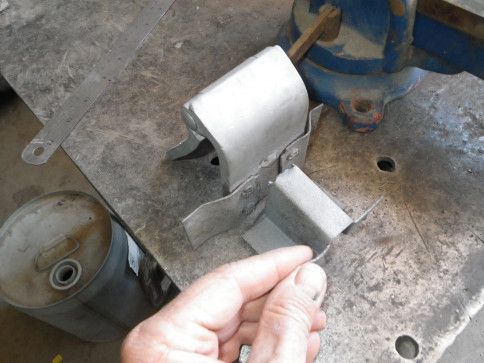

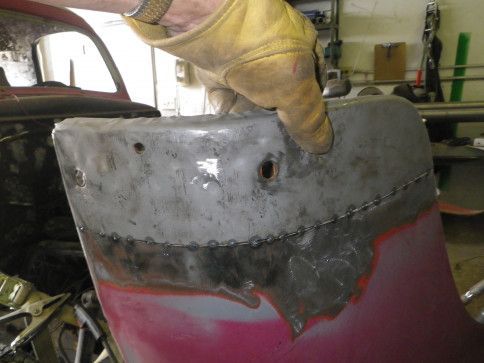

New formed sheet metal getting welded in place.

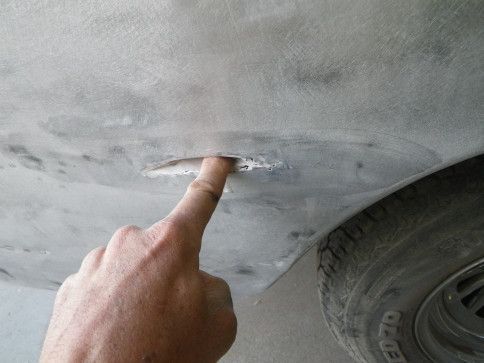

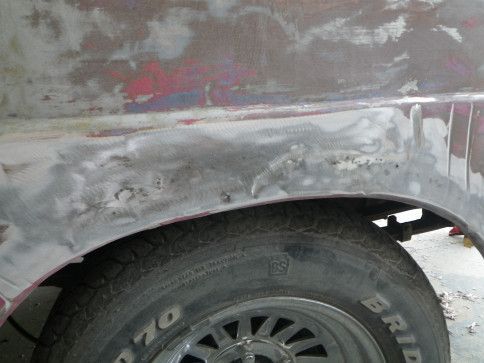

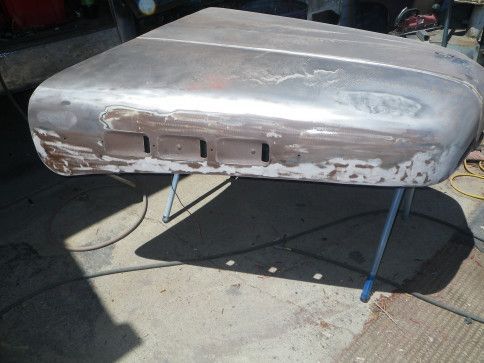

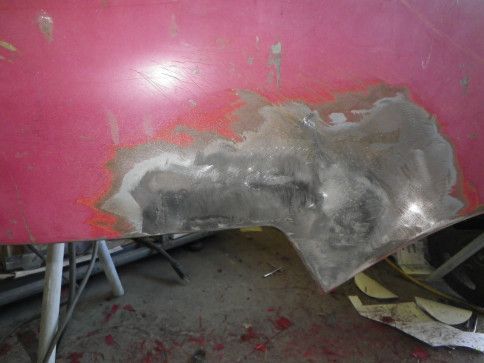

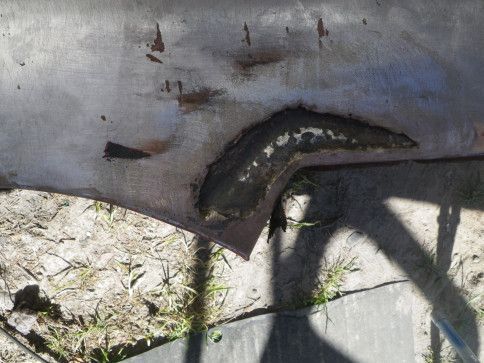

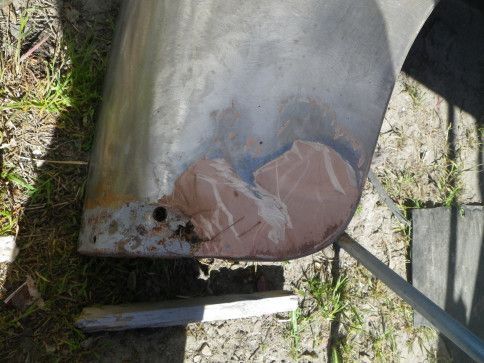

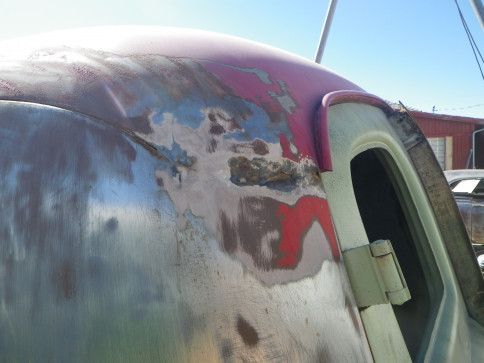

Filler shoved into rust hole, over 1 inch deep

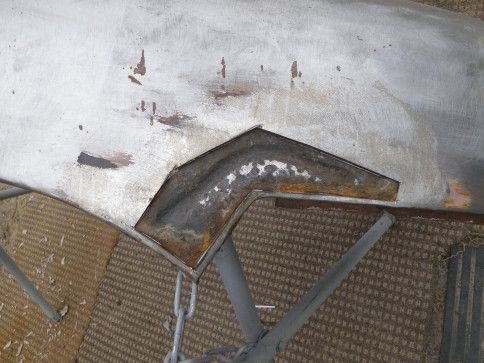

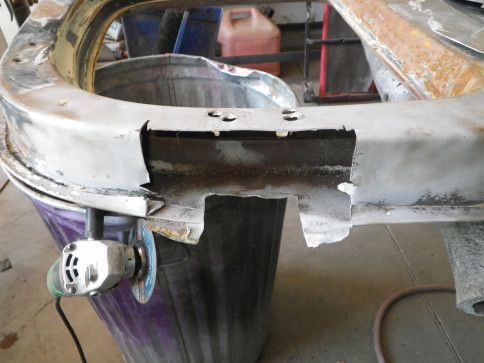

Cut away thin metal

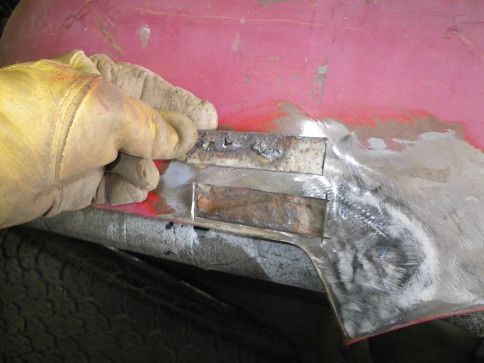

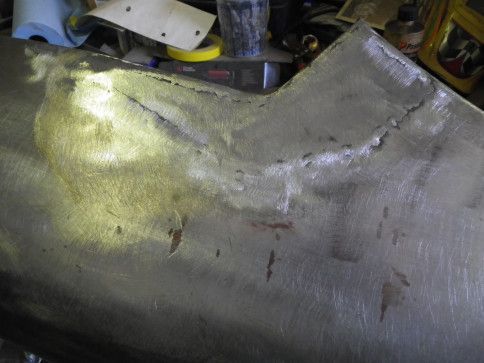

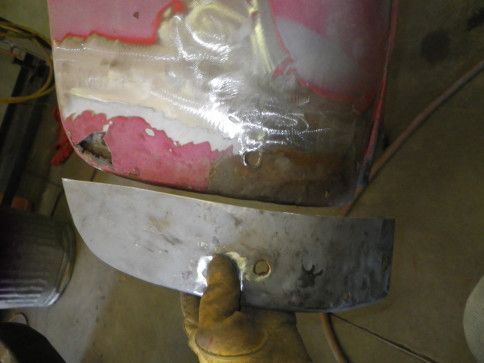

finish patch

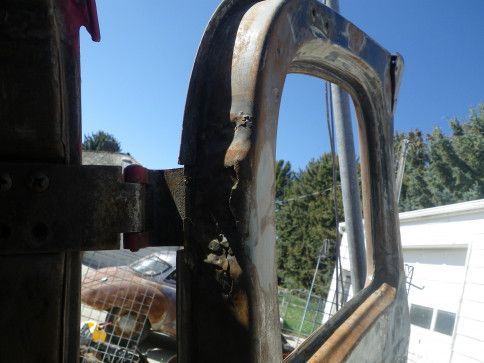

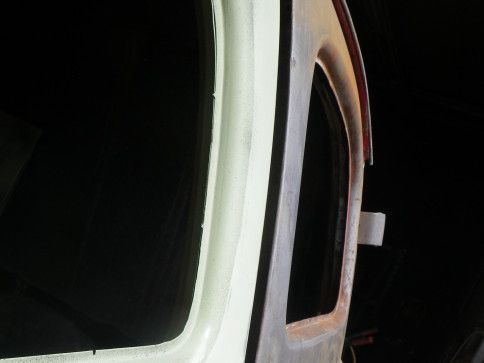

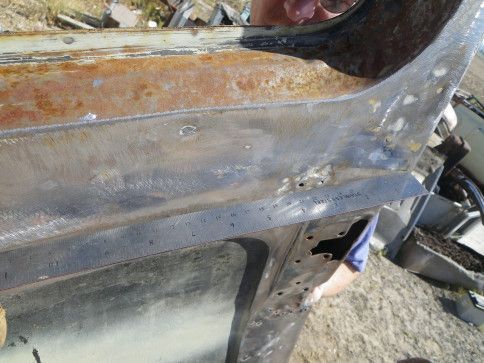

One door is twisted

Tried to weld pin holes, too thin melting away. Will replace

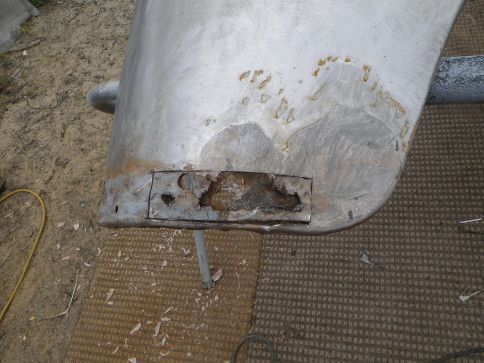

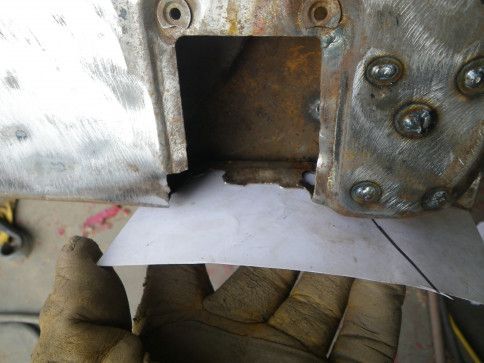

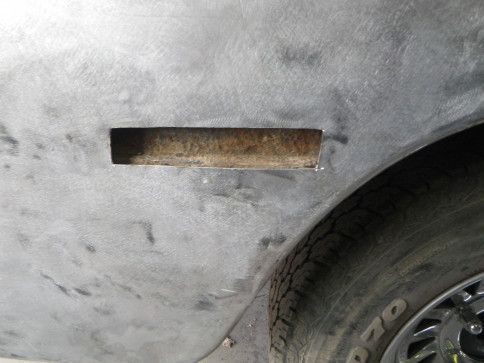

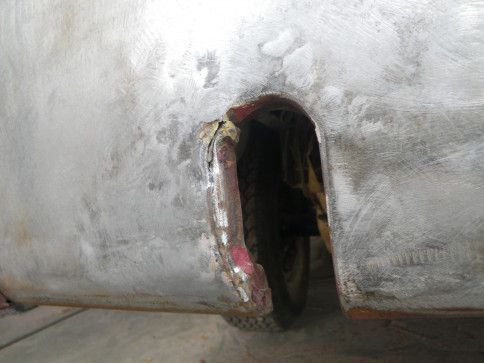

ready for patch

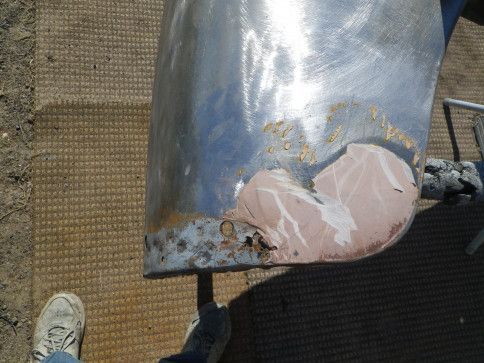

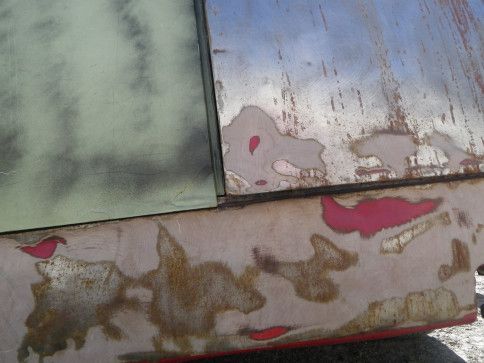

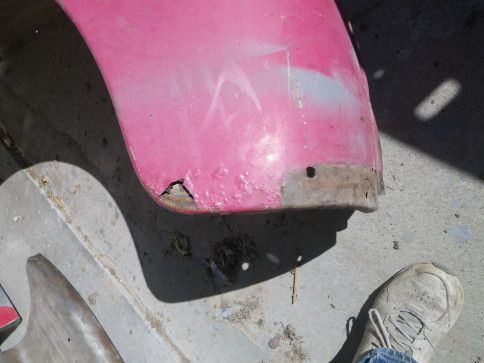

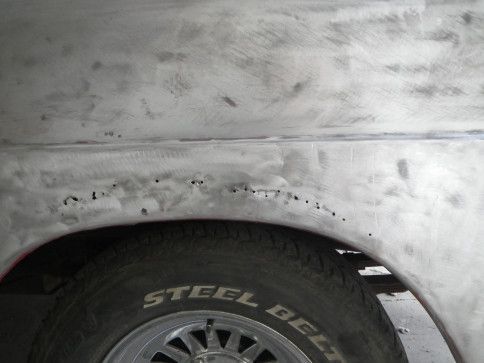

Removed filler, found rust holes

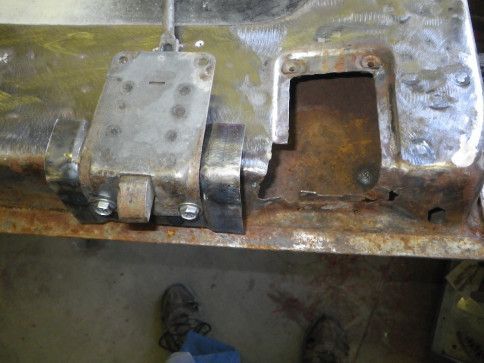

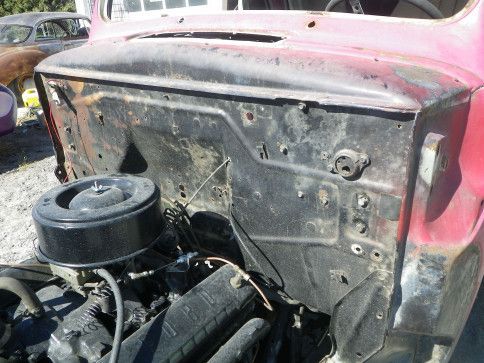

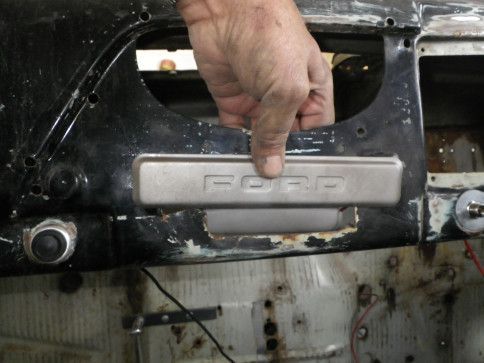

Dash has been butchered

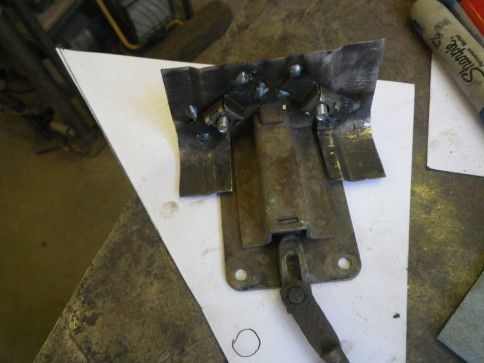

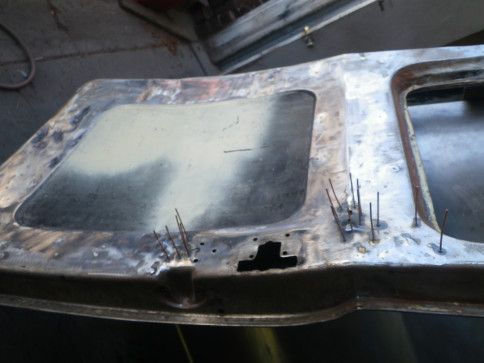

Trying to duplicate what I think it should look like

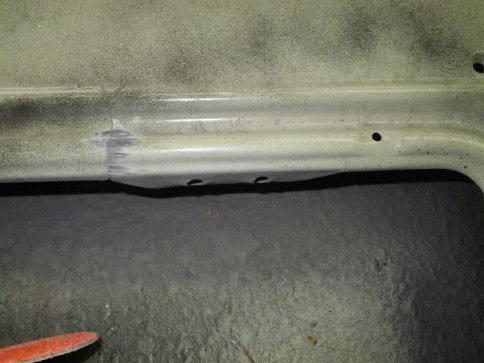

welded cracks on inner door panel

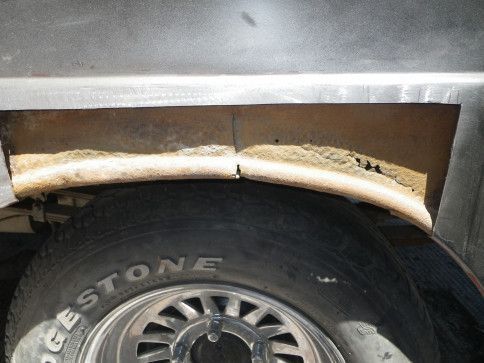

After removing outer skin, more rust is found

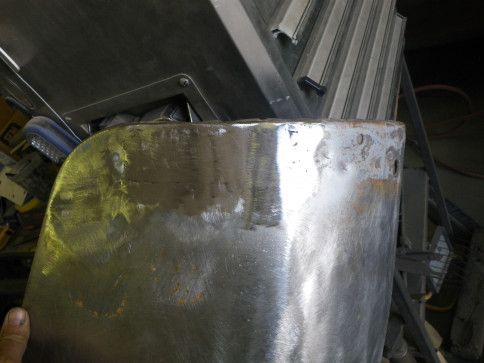

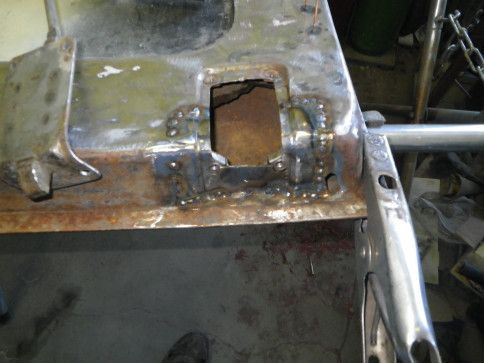

Inner patch welded in

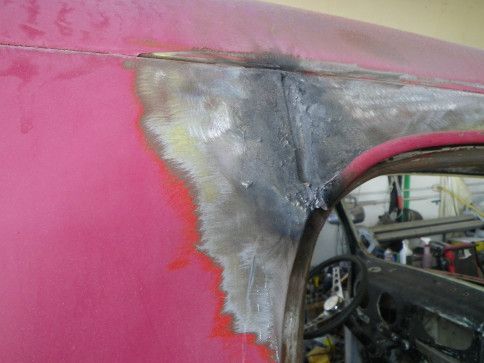

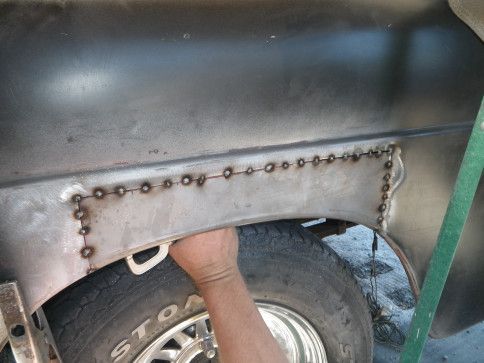

Outer patch spot welded in place, let cool then weld more , repeat, and grind smooth.

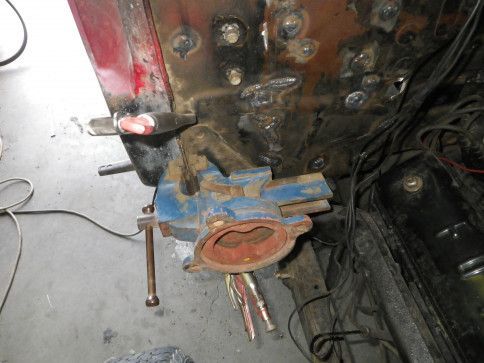

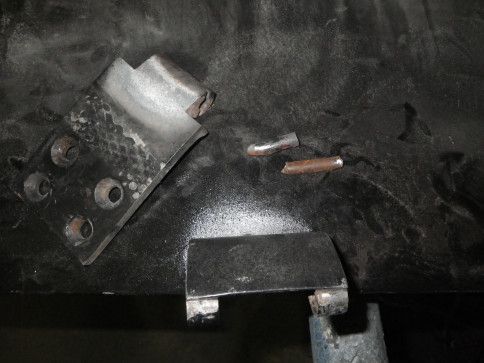

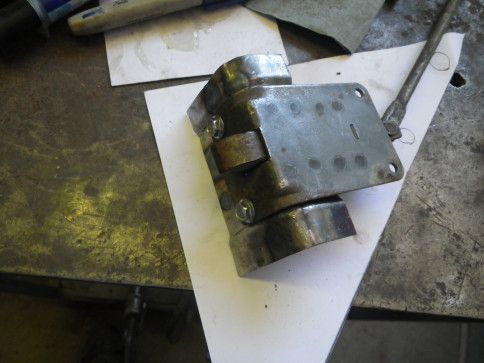

Removal of broken hinge pins.

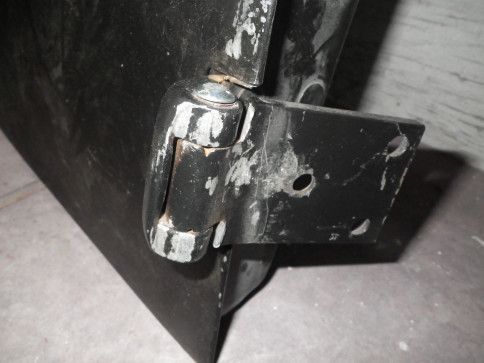

New hinge pin in place, 5 more to go.

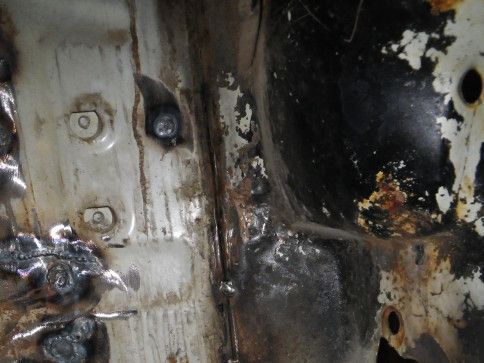

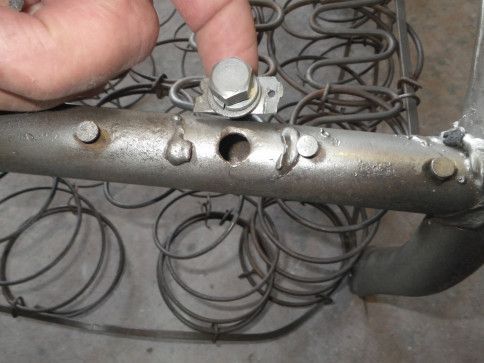

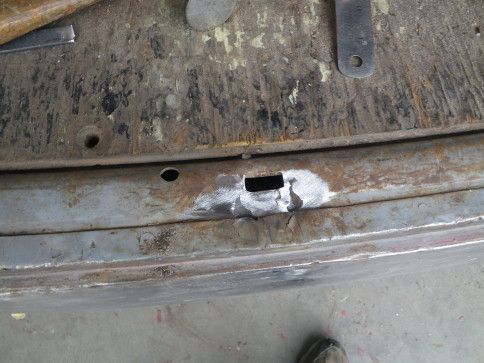

Threaded insert broke loose.

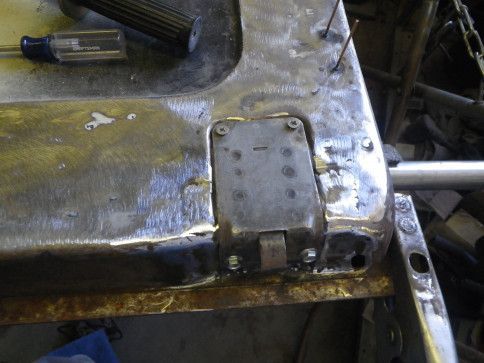

Welded back in place and sandblasted.

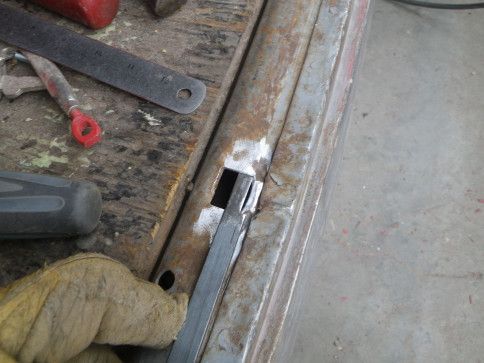

Chunk of steel missing on one seat riser track.

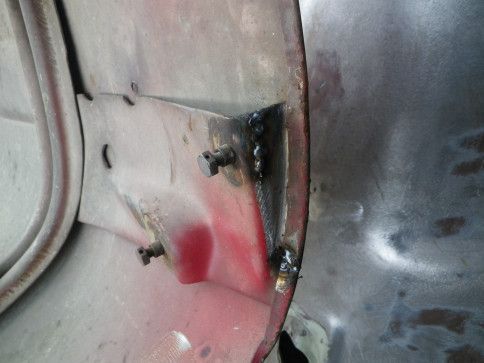

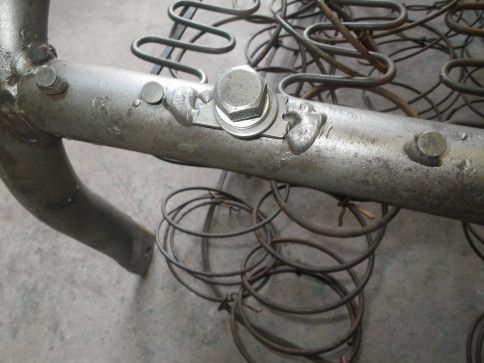

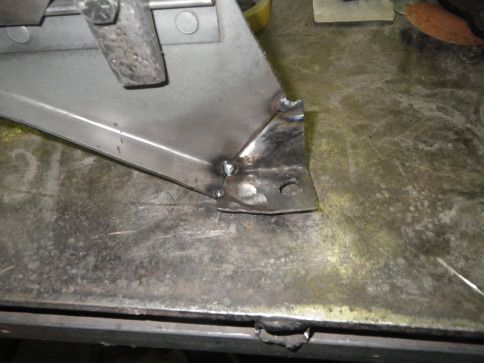

New piece tack welded on.

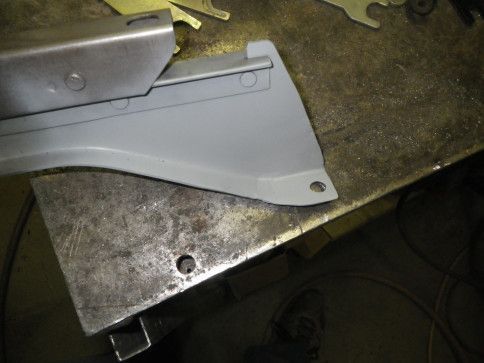

Repaired and in primer

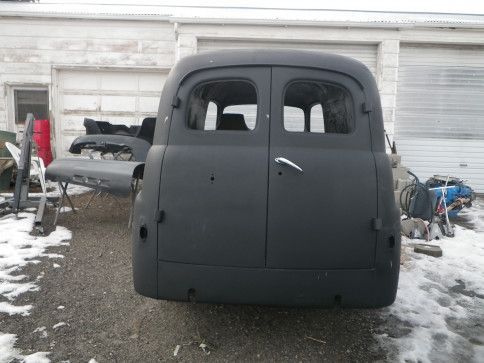

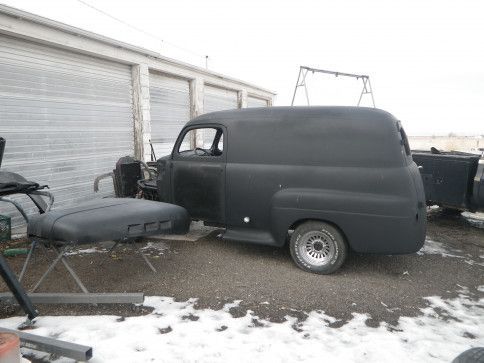

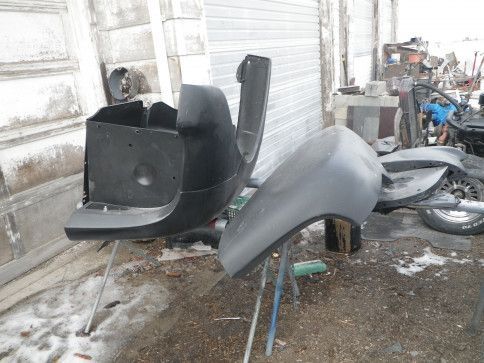

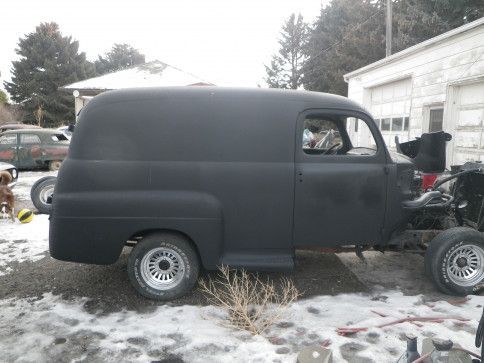

Everything in black primer

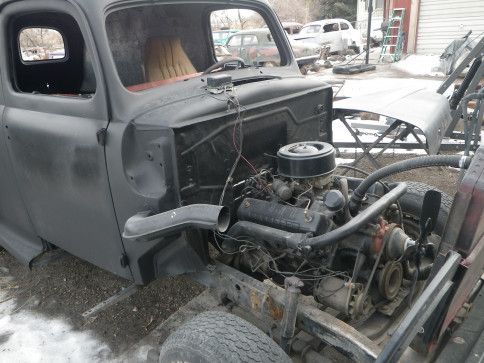

Starting to re-assemble front sheet metal
